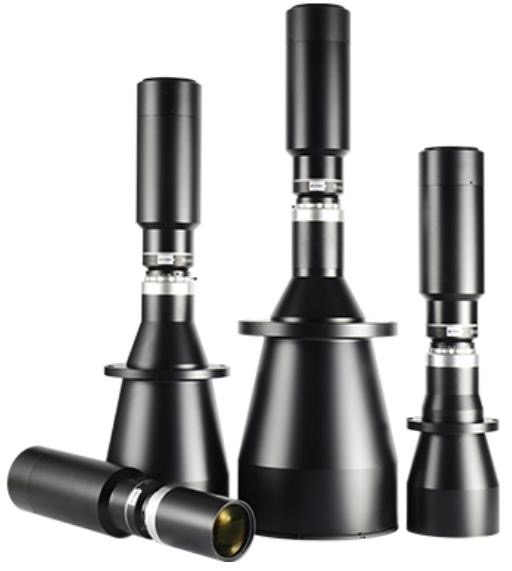

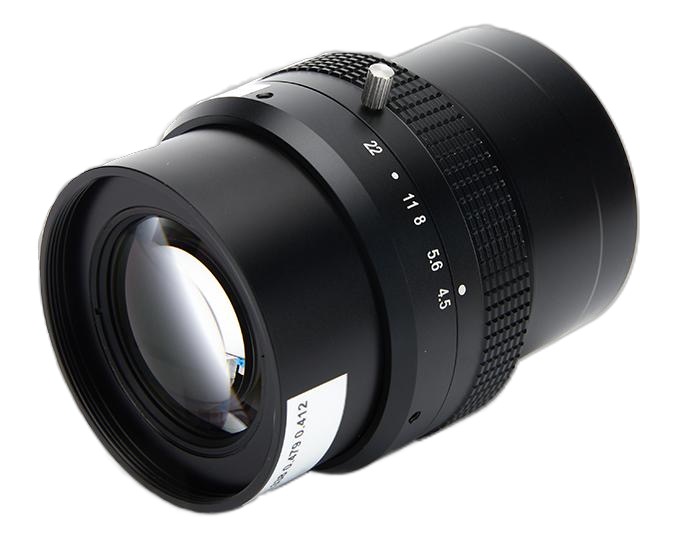

12K Line Scan Lens
Image circle diameter up to φ62mm, suitable for 8K/12K resolution cameras. High light transmission design reaching F4.5, low optical distortion, with standard magnification range covering 0.18X to 0.24X.
Specification parameters
| Model | Focal Length | Magnification | Sensor size | F/# | Distrotion | Working Wavelength | Mount |
| FL1161250VM2 | 116mm | 0.2X | φ62 | 4.5-22 | <0.01% | 652.4 | V-Mount(φ56) |
| FL1161250VM3 | 116mm | 0.33X | φ62 | 4.5-22 | <0.005% | 415.1 | V-Mount(φ56) |
| FL1161250VM5 | 116mm | 0.5X | φ62 | 4.5-22 | <0.01% | 291.7 | V-Mount(φ56) |
| FL1161250VM7 | 116mm | 0.75X | φ62 | 4.5-22 | <0.005% | 209.8 | V-Mount(φ56) |
| FL1161250VM8 | 116mm | 0.806X | φ62 | 4.5-22 | <0.005% | 203.8 | V-Mount(φ56) |
| FL1161250VM10 | 116mm | 1X | φ62 | 4.5-22 | <0.05% | 164.2 | V-Mount(φ56) |
| FL1161250VM12 | 116mm | 1.24X | φ62 | 4.5-22 | <0.005% | 149.9 | V-Mount(φ56) |
