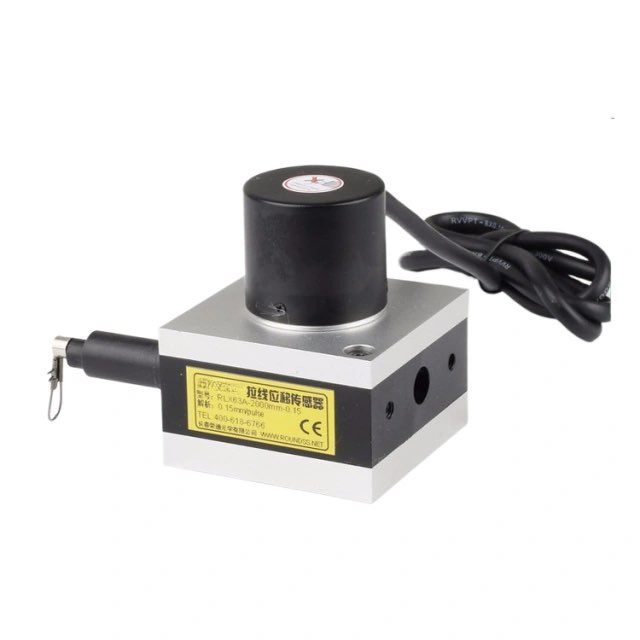

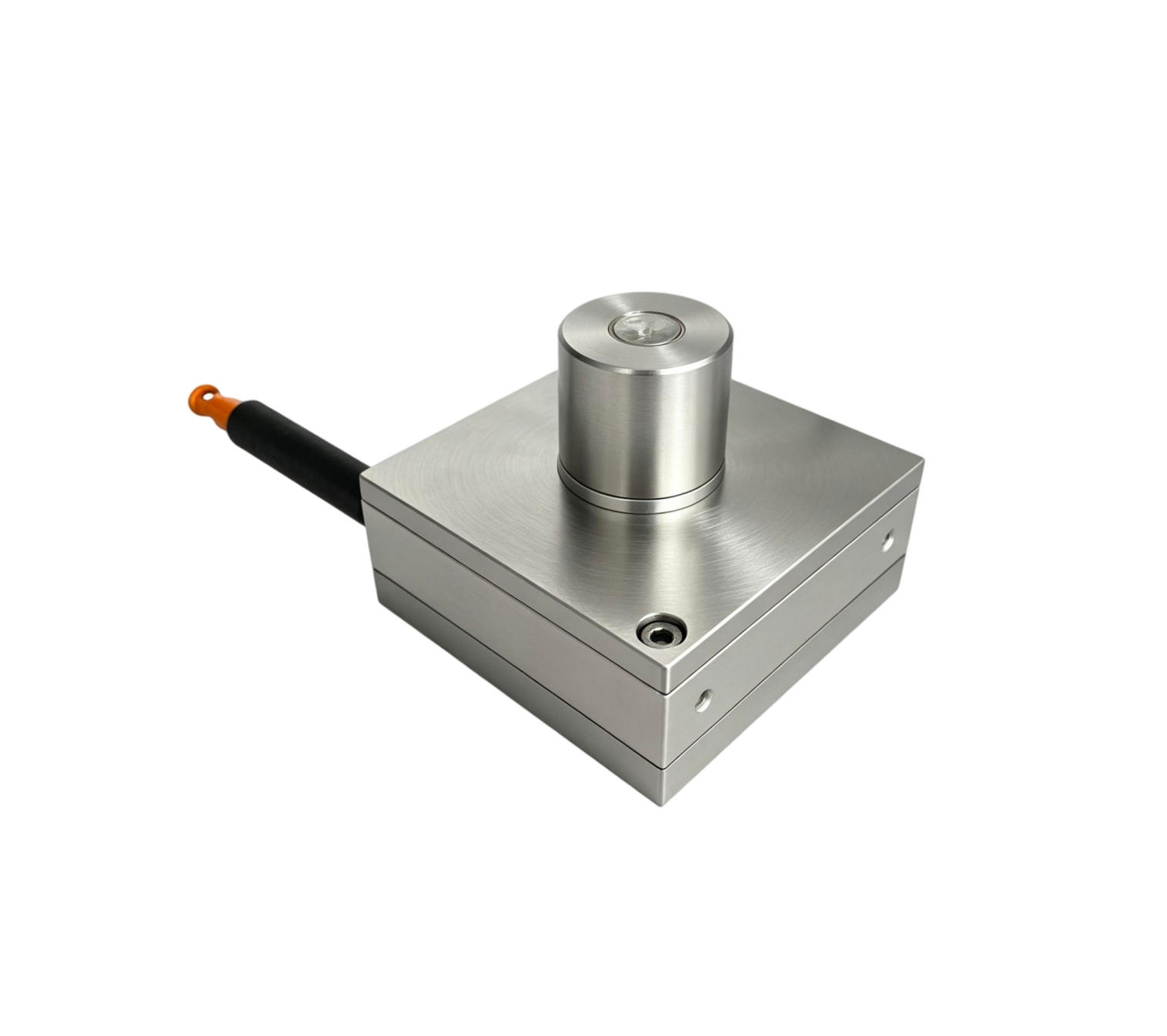

RLP50S
Analog Output
Imported precision potentiometers, Hall encoder and absolute encoder are optional for the analog signal output type.
The output signals:current 4-20 mA, voltage 0-5V , voltage 0-10V and resistance signals. The maximum stroke can reach 1000MM. Working temperature : -30 °C-+90 °C.

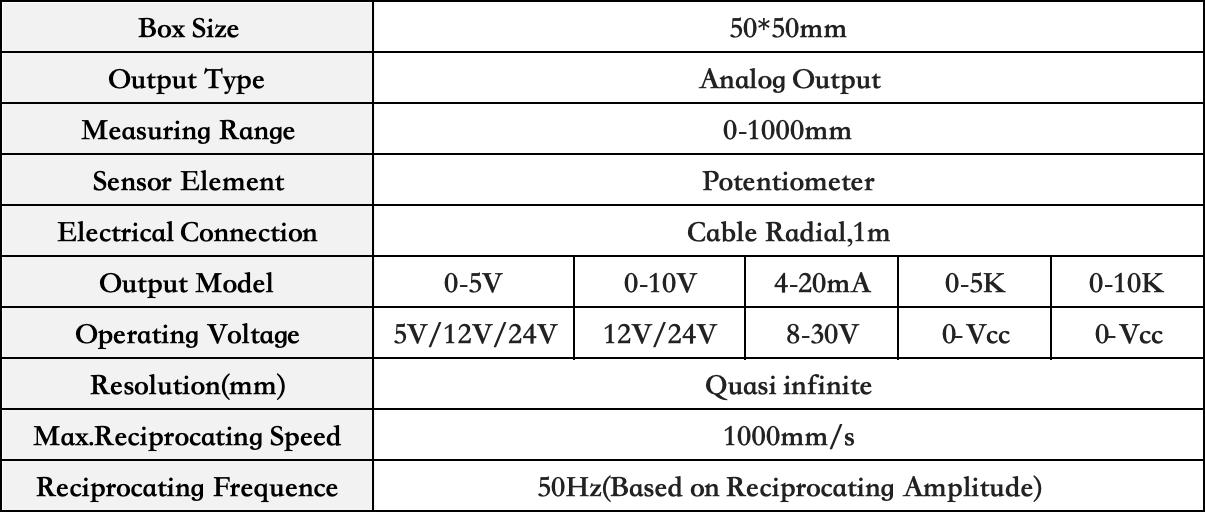

Specification parameters
