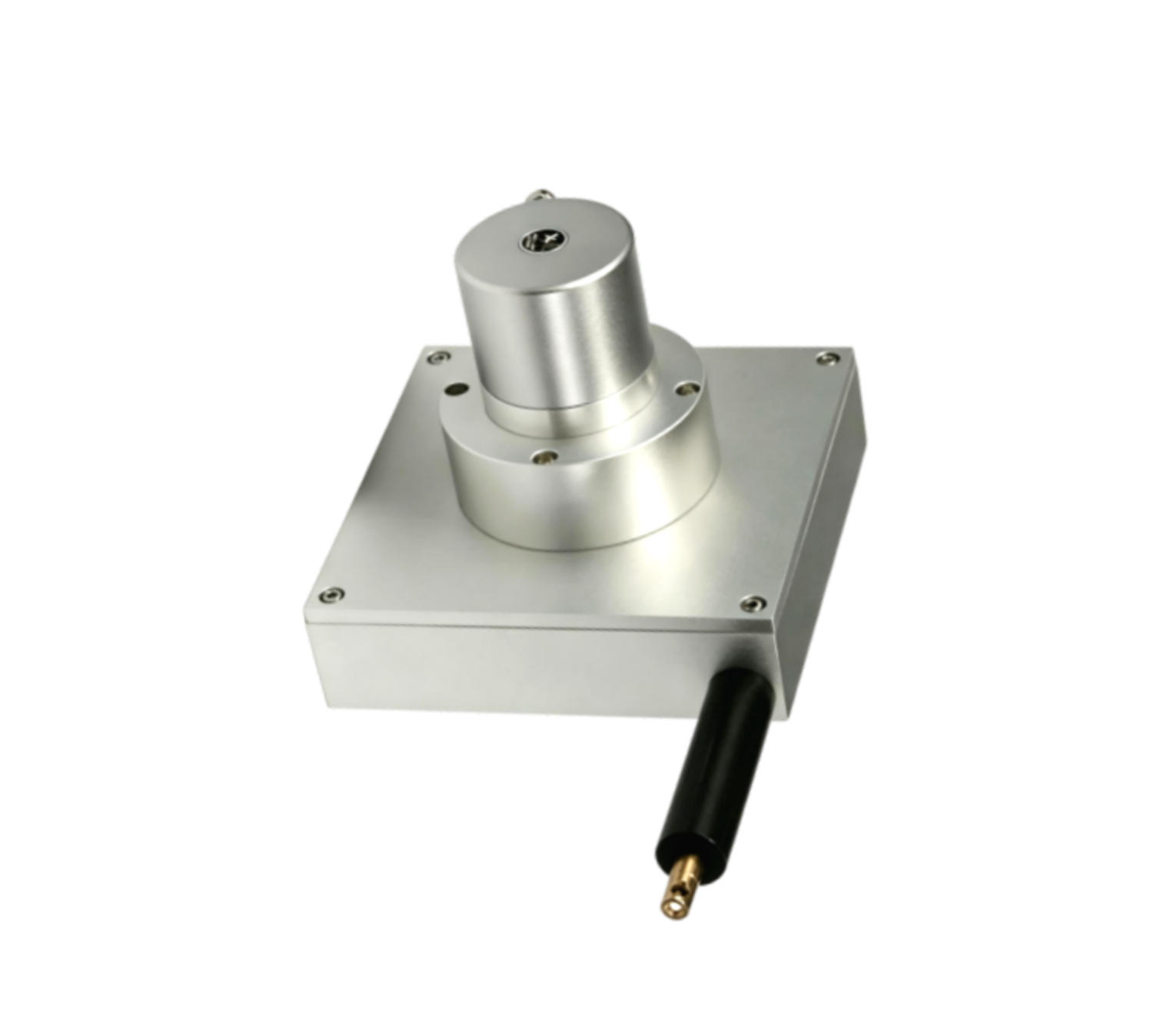

RLC115D
Digital Output
Incremental encoder and absolute encoder are optional for the digital signal output type. Output signals are square wave ABZ signals or Gray code signals.
Measurement range is up to 6000mm. Linear accuracy: 0.05% FS. Resolution based on the different configuration can reach 0.001mm / pulse in maximum. Working temperature: -30 ° C-+90 ° C.

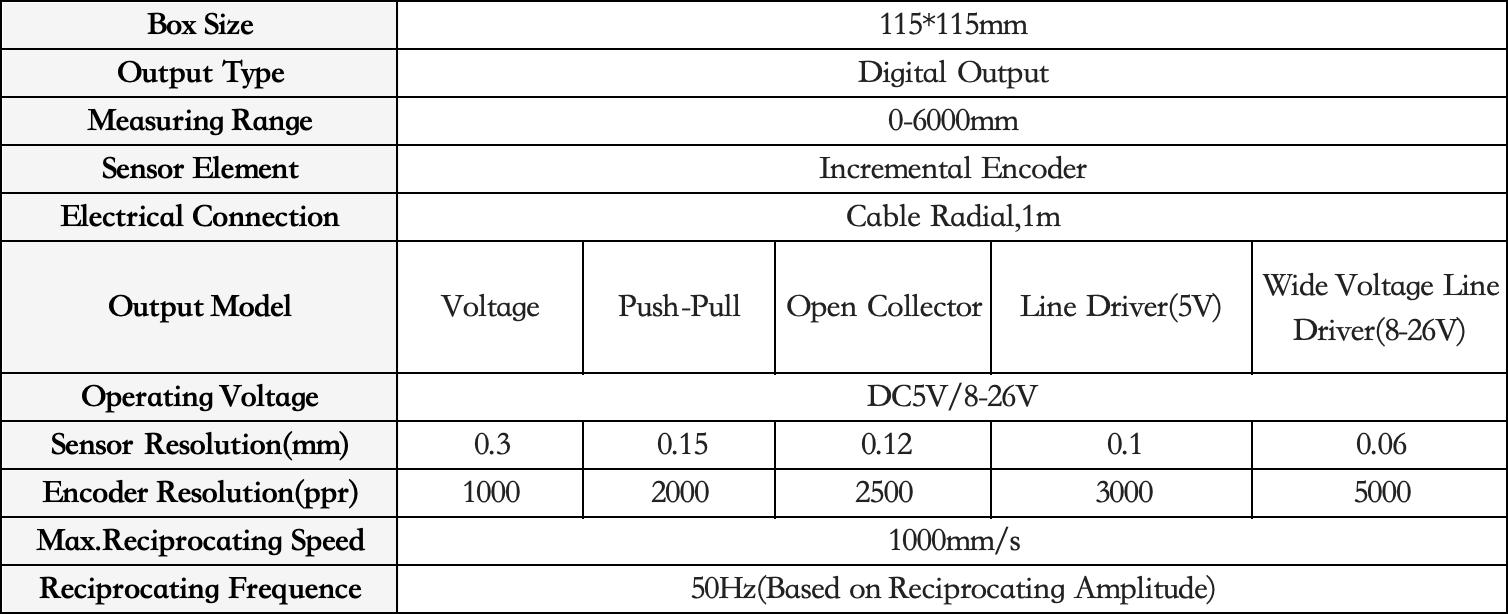

Specification parameters
